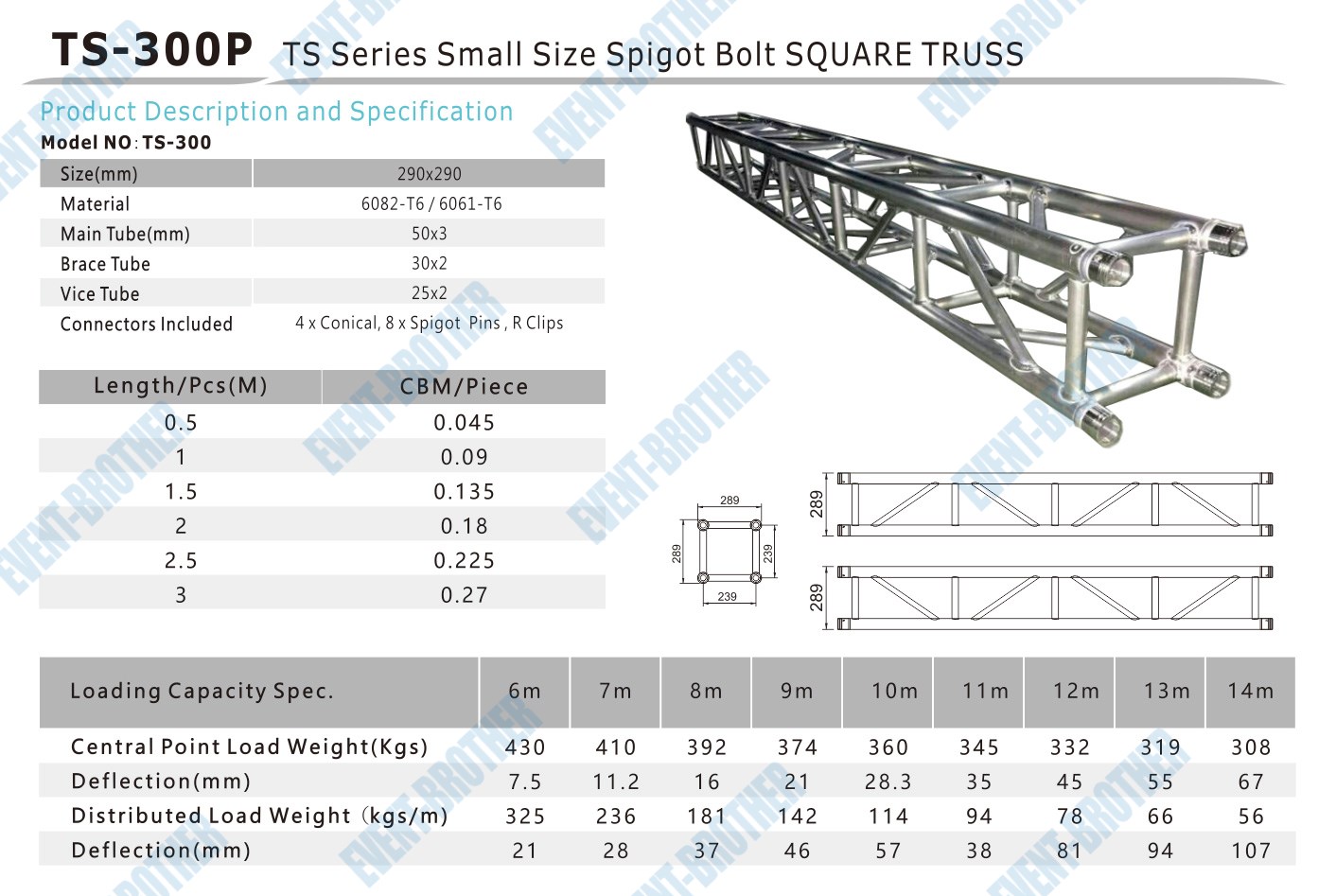

SKU CODE
ORDERING CODE | Size of Truss |
| TS-300P(3)x0.2 | 290mm*290mm x0.2m |
TS-300P(3)x0.3 | 290mm*290mm x0.3m |
TS-300P(3)x0.4 | 290mm*290mm x0.4m |
TS-300P(3)x0.5 | 290mm*290mm x0.5m |
| TS-300P(3)x1 | 290mm*290mm x1m |
TS-300P(3)x1.5 | 290mm*290mm x1.5m |
| TS-300P(3)x2 | 290mm*290mm x2m |
| TS-300P(3)x2.5 | 290mm*290mm x2.5m |
| TS-300P(3)x3 | 290mm*290mm x3m |
| TS-300P(3)x4 | 290mm*290mm x4m |
Characteristics:
- Supplied with 4 x Conicals, 8 x Pins and 8 x R-Clips
- Customized-made compatibility satisfied as per client request;
- Tube Spec（mm）: 50x3/30x2/25x2
-Either TUV Rheinland or TUV SUD weight loading capacity Tested;
-Power Coating Finishing Enabled;
